 1-Piping Materials :

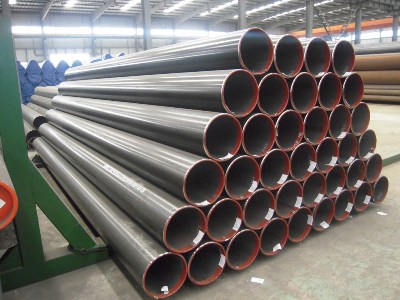

 1-1 Pipes:

 We supply all types of seamless/ERW/welded and fabricated pipes. Materials can be Carbon steel , Steel , Stainless Steel , Alloy Steel , Duplex Steel, Monel and Inconel.

Pipe Types: Seamless ,Welded , SAW, EFW, ERW.









1-2  Gaskets :

 Supply many types of Gaskets for using in different pressure and temprture.






1-3 Valves :
We can offer all types of valves according to API, ANSI or DIN standards for your requested materials such as:

(Ball Valve)

·         Process valves
·         PFA lined
·         One, two or three pieces
·         Metal seat material
·         2 , 3 or 4 way
·         With Pneumatic or Electric Actuator



                                 ( Gate Valve  )                                                                                           ( Globe Valve )



                                                                                            ( Check Valve )

·         Swing type
·         Wafer swing type
·         Disc type
·         Dual plate disc
·         Ball type



                                                       Plug Valve                                                                               Diaphragm



                                                                                              Safety Valves







Butterfly Valves
 Soft Seated Butterfly Valves

  • Centric Design
  • Seat Material : EPDM , NBR , VITON , SILICONE
  • Disc Material :Stainless Steel , Alloy Steel
  • Operation : handlever, Gearbox, Pneumatic and Electric Actuator
  • Accessory : Limit switch box, Solenoid Valve for automatic on/off service
  • Max.Pressure : 16 bar  (working Pressure depends on Working Temperature)
  • Standard : DIN , ANSI , API



PTFE Lined Butterfly Valves

  • Centric Design
  • 2 Piece Body
  • Seat Material : PTFE
  • Disc Material : stainless steel 316 / ENCAPSULATED PTFE cast iron
  • Operation : Handlever, Gearbox, Pneumatic and Electric Actuator
  • Accessory : Limit switch box with solenoid valve for automatic on/off service
  • Max.Pressure : 16 bar  (working Pressure depends on Working Temperature)
  • Standard : DIN , ANSI , API


High resistance of PTFE against aggressive and corrosive fluids makes it a unique material to utilize in a wast range of hard applications such as transferring all kinds of acids, high temperature media , solid contains media ,etc.



      High Performance Butterfly Valves

  • Double Eccentric
  • Seat Material : stainless steel , PTFE
  • Body Material : stainless steel , A216 WCB
  • Disc and Shaft : stainless steel
  • Operation: Handlever, Gearbox, Pneumatic Actuator , Electric Actuator
  • Accessory : Limit switch box, Solenoid Valve for on/off service and  Positioner to use as control valve
  • Max.Temperature : 450 ^C
  • Max. Pressure : 40 bar (depends on working Temperature)
  • Standard : DIN , ANSI , API

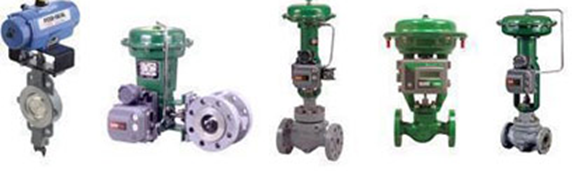

Control Valves

we offer both type of rotary and slide control valve from best American , west European and Japanese manufacturers for your service.






Slide Control Valve




                                                                                    Rotary Control Valve






1- 4 Flanges & Fittings

1-4-1 Flanges


We supply all types of flanges as follows:


( Flat Flange )


1) Stainless steel flange
2) Standard: ANSI, JIS, DIN
3) Material: 316L, 304L
4) Production with anneal solution for stainless performance.




Welding Neck  ( Conflat Flange )

Stainless Steel : ASTM A 182, A 240
Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L,
Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel : ASTM A 105, ASTM A 181
Alloy Steel : ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys : Copper, Brass & Gunmetal
Size : 1/4" NB To 48" NB.
Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.

1-4-2 Fittings  :

We supply all types of fittings with required Standards and Materials in a wide range of sizes such as:

Coupling Elbow Cross Nipple
Plug Union Tee Reducer


Cap Olet

Stainless steel: ASTM A 182, A 240
Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L,
Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel : ASTM A 105, ASTM A 181
Alloy Steel : ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys : Copper, Brass & Gunmetal
Size : 1/4" NB TO 48"NB.
Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.
